QuantGene 9600 is based on the excellent quality of the LineGene family, using the very mature thermoelectric refrigeration technology, a new light source and optical circuit design. The unique constant current power supply and 6-zone independent temperature control method ensure that the product is fast, accurate and stable in fluorescence quantitative analysis. The product adopts modular design, with a variety of configuration options, at the same time, the addition of temperature gradient, sample 4°C cryopreservation, automatic dehumidification and other functions, fully meet the scientific research and clinical medical needs.

Top imaging photoelectric detection
Top imaging technology was adopted to collect 96-well fluorescent signals without detection time difference. Fast detection, single channel detection need only 1 second;
A new array of flat-field light source can greatly improve the excitation optical effect and enhance the fluorescence signal；
The excitation and detection channels adopt independent filter wheels, which can cope with secondary excitation detection experiments without expanding the channel, such as the application of double hybrid probe；
The cluster conduction design of high-end optical fiber is adopted to improve the fluorescence signal strength, reduce the optical conduction loss, and eliminate the edge optical path difference without calibration.

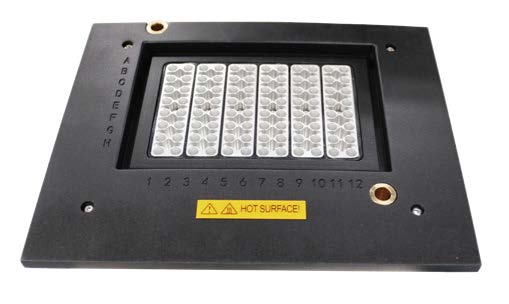

6 partition thermal cycling module
The use of 72 series long life semiconductor refrigeration (Ferrotec Peltier), its life is three times higher than that of traditional TE;
Micro heat pipe array technology, improve the heat conduction efficiency;
6 partition accurate and independent temperature control, improve the reaction speed;
High temperature uniformity, fast ramping speed;
